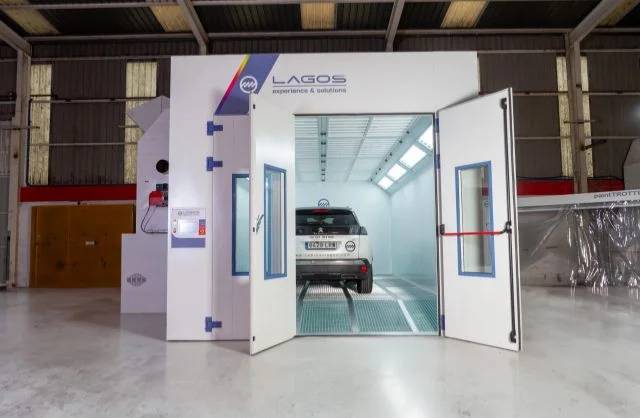

New EVO Paint Booth for Cars

The paint booth evolves. Style, technology and efficiency.
The latest frontier in painting processes.

The EVO booth by Lagos is our response to current market trends and needs, developed from input provided by industry professionals.

It integrates all the relevant technological advances from demanding sectors such as aerospace and renewable energy. As a result, it incorporates high-quality components made in Europe with proven effectiveness over time.

All of this at a very contained cost, making it one of the most competitive options on the market in terms of value for money.

Style and functionality

3-leaf front. Greater manoeuvrability and efficiency.

Inverter system

Digitally calibrated to optimise airflow and equipment performance based on real-time input.

Recycling damper

Your drying cycles with the greatest possible energy savings. Maximum energy efficiency by recycling the booth's hot air, with no need to draw it from outside.

Fast, simple maintenance

"Easy-swap" filter system. Allows all plenum filters to be replaced in a matter of minutes

Watch video

HMI digital panel

Cost control, the ability to predict maintenance needs and cycle customisation via the LAGOS HMI digital screen, fitted as standard on the EVO booth.

See benefits

Competitive price

Our EVO booth is designed to achieve the best value for money on the market.

· 3 doors with DOUBLE LAMINATED glazing.
· 2 doors with espagnolette locks.

· 4-tube LED panels.
· Laminated glass.

· 7″ touchscreen PLC.
· Automatic pressure control – Inverter.
· Filter saturation alarm.

See Lagos HMI benefits

· FULL grated floor.
· With or without civil works (interior ramp).

· Plenum with thermal and acoustic insulation.
· Simple Easy-Swap maintenance. Watch video.

· Recycling damper as standard.

Features

Perimeter enclosure:
· White lacquered galvanised sheet metal.
· Insulation: Self-extinguishing.
· The PLUS option includes 1 side service door.

Front:
· THREE doors with DOUBLE LAMINATED glazing.
· 2 doors with espagnolette locks.
· 1 SERVICE door with panic release.

Floor:
· FULL grating (ET): civil works or interior ramp.

Filter ceiling:
· M5 filtration.

Upper plenum:
· With thermal/acoustic insulation on the top section.
· Additional perimeter insulation in the PLUS option.

Lighting:
· Angled side panels with 4 LED tubes.
· LAMINATED glass.

Generator:
· G4 (synthetic) pre-filtration.
· Stainless steel boiler.
· Diesel burner (1 or 2 stages), gas or air-vein.
· Recycling damper for the drying phase.

Extractor:
· 1 G4 (synthetic) filter layer.

Control panel:
· INVERTER – generator + extractor.
· PLC + 7″ touchscreen.
· Automatic pressure control.
· Filter alarm.
