Essential equipment for any bodywork and paint shop. Take a look at Lagos' renowned paintTROTTER booth.
paintTROTTER is an innovative solution, ideal for small repairs in the automotive industry: cars, buses, trolleybuses, motorcycles, classic and vintage cars, sports and racing vehicles, trucks…
paintTROTTER is also ideal for painting and treating components and structures in the furniture and timber, construction, renewable energy and other industrial sectors.
· Carry out a quick repair job in under 40 minutes.
· Significant reduction in energy consumption compared with a traditional paint booth.
· Integrated 5+1 stage filtration system with 92% VOC retention capacity.
· Experience a new kind of freedom of movement with the paintTROTTER's enhanced mobility. Bring the booth right up to the vehicle to carry out the work while the vehicle stays in place, with no need to move it.

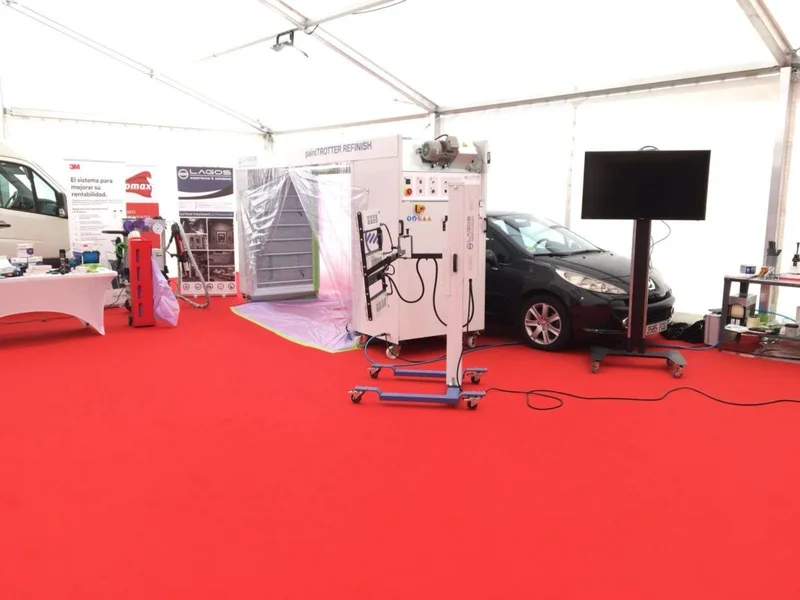

A plug & play product. The operator positions the paintTROTTER next to the vehicle anywhere in the work area. The worker then simply needs to connect the equipment to the appropriate power socket in the workshop.
The next step is to fit the protective film and apply the adhesive tape, shaping the film to the area to be repaired so the technician can work on the section to be painted. Thanks to this simple step, the paintTROTTER is completely enclosed and ready to begin the repair process.
paintTROTTER becomes an enclosed booth system, allowing work in a space free of dust and dirt thanks to its efficient air recycling system. At the same time, excess overspray and dust do not spread to other areas of the workshop, as they are contained within the enclosed paintTROTTER area.
Optionally, paintTROTTER can also incorporate short-wave infrared equipment to reduce drying times. This system cuts overall process times by a third compared with the time required by a traditional booth.
paintTROTTER helps make the most of preparation, painting and drying times in small repairs. Its mobility and ease of use within the workshop environment help optimise repair times, which ultimately has a positive impact on productivity and increased profitability.
With paintTROTTER we have created a flexible work area that also allows other repairs to be carried out at the same time. There is no need to move vehicles in order to work in a specific area.
Achieve greater profitability in your small repairs area. Low maintenance and operating costs make paintTROTTER the best solution for your workshop's small bodywork repair space.
High energy costs are reduced with paintTROTTER, and thanks to its low energy consumption, it is the best equipment for cutting operating costs in small repair processes.
Dimensions
Length: 4,300 mm
Width: 1,100 mm
Height: 2,160 mm
Technical description
Mechanics: Electric (Single or three-phase)
Extraction airflow: 6,000 m3/h
Air speed (measured at filter outlet): 1 m/s
Average air speed: 0.5 – 0.8 m/s
Average lighting intensity: 1500 lux
Lighting type: ATEX
Noise level: 65dB at 1 metre
VOC retention capacity: 60 – 97%
Motor power: 2.2 kW
Lighting power: 0.23 kW
Filtration system: 5+1 stages
Technical specifications may be changed without prior notice. Contact us to stay up to date.
Air recirculation. No extraction duct
The standard version (STD) of the paintTROTTER Refinish is the most widely used for normal workloads in countries whose legislation allows partial recirculation of filtered air from the paint booth.
The 5+1 stage filtration system means only a residual amount of VOCs is expelled outside the booth, keeping the working environment in optimal, healthy conditions.
The STD version offers greater mobility, as it only requires a power socket to operate and can easily be moved wherever needed.
Advantages
With extraction duct
The EVO version of the paintTROTTER is especially useful in environments with high workloads or in countries whose legislation does not allow any type of air recirculation in paint and surface treatment booths.
With two perfectly calibrated drive and extraction motors, the paintTROTTER expels air outside the workshop (outside the facility) via a flexible duct, with VOCs having already been filtered so the air expelled outside is clean.
Thanks to this system, maintenance costs are significantly lower due to the reduced number of filtration stages.
Advantages
Share this catalogue with your partners and colleagues and show them the benefits of the touch-up solution of the future.
Download catalogueHow do you start up paintTROTTER?
paintTROTTER is a plug & play product. All you need to do is plug it into the mains power supply to start the equipment.
Is paintTROTTER suitable for painting and repairing buses, trains, motorbikes… or only cars?
paintTROTTER adapts perfectly to a wide range of vehicles, machinery and industrial components. Based on this, our customers use paintTROTTER to repair cars, buses, trolleybuses, trams, trains and metros, motorbikes, trucks, and industrial components for the construction, furniture and timber, and renewable energy sectors…
Do I need to carry out special works at my facilities to use paintTROTTER?
No, not at all. No special works or adaptations are required whatsoever. You simply need enough space to move the paintTROTTER comfortably and bring it up to the vehicle/machine/component to be repaired. After that, you just need to plug the paintTROTTER into the mains power supply.
How many people are needed to operate paintTROTTER?
Only one operator is needed to work with paintTROTTER.
How do you guarantee that air quality in the work area is optimal?
paintTROTTER has a 5+1 stage filtration system, which filters VOC (volatile organic compound) microparticles to keep the air clean in the work area where the operator carries out the repair.
Do I have to move the vehicles or machines/components I want to repair in order to use paintTROTTER?
No, the paintTROTTER can be easily moved and brought up to the vehicle, machine or component to be repaired. There's no need to move the vehicle or machine.
